3D Printer
WHAT IS 3D PRINTING?
3D Printing is the amazing process of producing a three-dimensional, solid object of virtually any shape from a digital model, or blueprint, that has been designed using special 3D modelling software on a computer. The 3D printer reads the design files and, using an ‘additive’ process, prints thin layers of a material such as PLA, ABS, wood derivative or metal in a particular sequence. The layers of material cool quickly and fuse together to create the final physical 3D object.

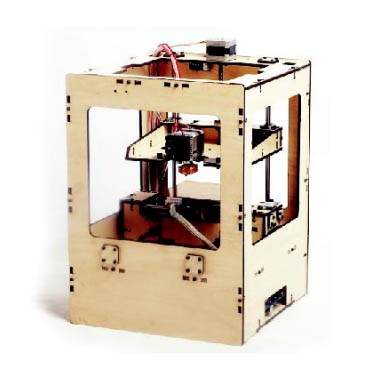

V-3D Printer
V-PLA 3D helps in creating the world of infinite possibilities by converting the computer design to real life tailored made objects e.g. (Cell phone covers, accessories, jewellery, Wallet, Headphones, Speakers, DJ Desk, Interior Designed models, Toys, Eye wear, Coffee cups, Clock, Hanging Lights, Camera Lens, Flute, Acou Guitar, High heel shoes, Gears, Medical models, Architecture models, Engineering models, Sculptures and much more to check out on our website). These objects have an aesthetic value, can be felt and used instantly.
Machine Specifications:
|
Print size ( X Y Z ) The Layer Thickness Layer Resolution Chasis Printing Filament Filament Diameter Nozzle Diameter Machine Dimensions Shipping box dimensions Machine weight Shipping box weight Maximum Print speed Recommended Print speed Print Plate Size Print Plate (Build Platform) AC Input No.of Extruders Power Requirements Connectivity (Interface) Electronics Operational Environment 3D printing Software CAD Input data supported Client Operating System Print in dual color Print in multi color/material Warranty |
: : : : : : : : : : : : : : : : : : : : : : : : : : : |
190mm x 190mm x 210mm
0.1mm to 0.2mm 100 microns to 200 microns Aluminium and ABS PLA 2.85mm 0.4mm (J-Head Mk V-BV) 460 mm x 430 mm x 430mm 650 mm x 530 mm x 520 mm 13kg 15 kg 150 mm/s 70 mm/s 250 x 277 mm Glass with 3M Masking Tape 100-240 Volts , 50-60 Hz 1 19 volts , 6.23 Amp Usb, SD card Arduino 2560 sheild with LCD & SD Card holder 15-32 degree celcius Printware .Stl, .obj Windows, Linux, Mac No Upgradable to J-paste extruder One year - Limited Warranty |

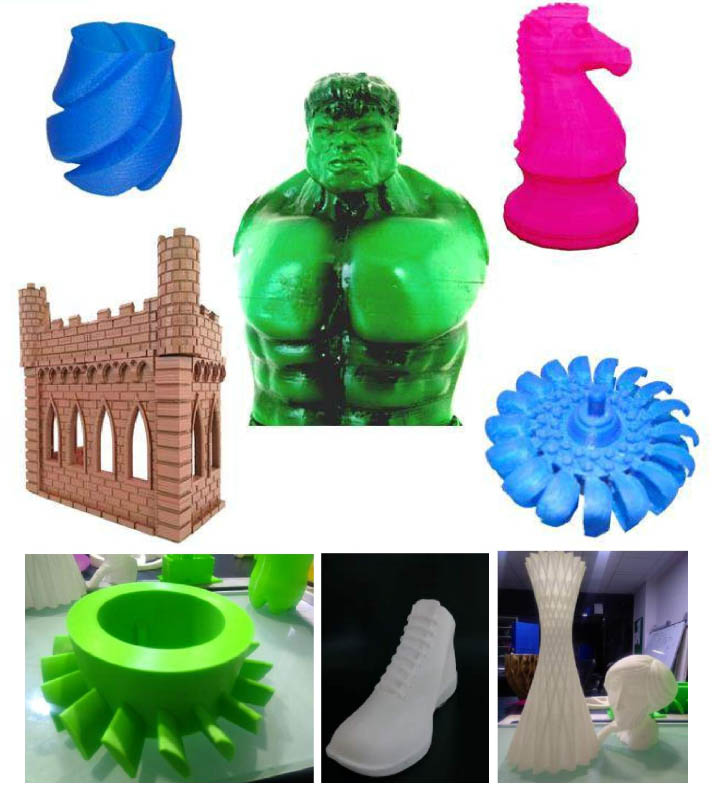

Samples

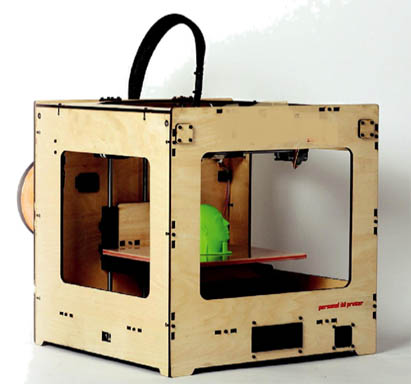

DESKTOP 3D Printer
The Desktop 3D Printer is a full-featured desktop 3D printer for daredevils and experimenters to explore the frontiers of 3D printing. Optimized for the traditional thermoplastic ABS filament, the printer is prepared for future developments in 3D printing.
3D printing is a way of making three-dimensional solid objects of practically any shape from a digital model. The technology, which is also known as "additive manufacturing," could have applications in a wide range of industries including Defense, Aerospace, Automotive and Metals manufacturing
Specifications
|
Printing Material Layer Thickness Print Speed Print Size Printer Weight Gross weight Printer Size |
ABS or PLA Plastic : 0.1mm – 0.3mm : 40mm/s : 200 x 200 x 200 mm : 18 kgs : 20 kgs : 410 x 400 x 415 mm |
| With LCD display, control pad and SD card | |
Electrical and software parameters
|
Operating Voltage Model Support Input format Workstation Interface |
240v @6.25 Amps Auto- generated support STL Windows XP/Vista/Win7; Mac USB to PC/Mac/Linux |
